SPECIFICATIONS

2.4g wi-fi transmission rate: 1200 Mbps

5G Wi-Fi Transmission Rate: 2167Mbps

Antennas: built-in antennas

Brand: SUNCOMM

CPU: Qualcomm Snapdragon X75

Country Version: EU Version

Encryption Type: WPA2-PSK,WPA2,WPA3,WPA

Network: 5G+4G LTE

Power supply: DC 12V 2A

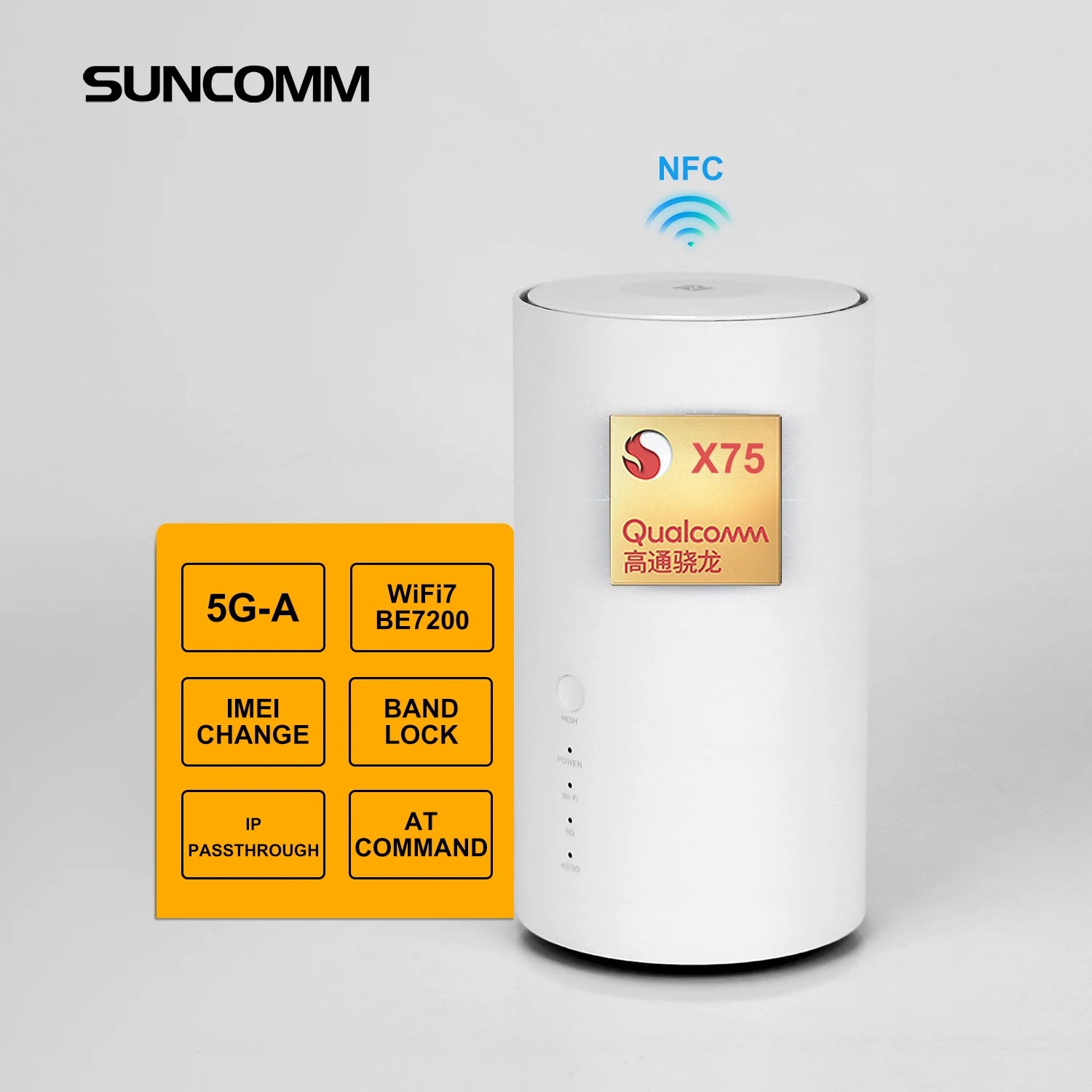

Product name: 5G CPE Router

SIM card slot: 1 SIM Card Support

Support: IPv4/IPv6

Supports WDS: No

Supports WPS: Yes

User: 256 User

VOICE: 1*RJ11,support VOIP/VOLTE/VONR(optional)

VPN: PPTP/L2TP/GRE

WAN Ports: 1

WIFI: WiFi 7 2.4G/5G

WiFi Transmission Standard: WiFi 802.11 ax

application: Indoor

function: Voip,QoS,VPN,FireWall

lan ports: 2

max. lan data rate: 6000Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11a,Wi-Fi 802.11ax

type: CPE

wifi supported frequency: 2.4G & 5G

wired transfer rate: 2500Mbps

with modem function: Yes

Why Choose Us

Product Details

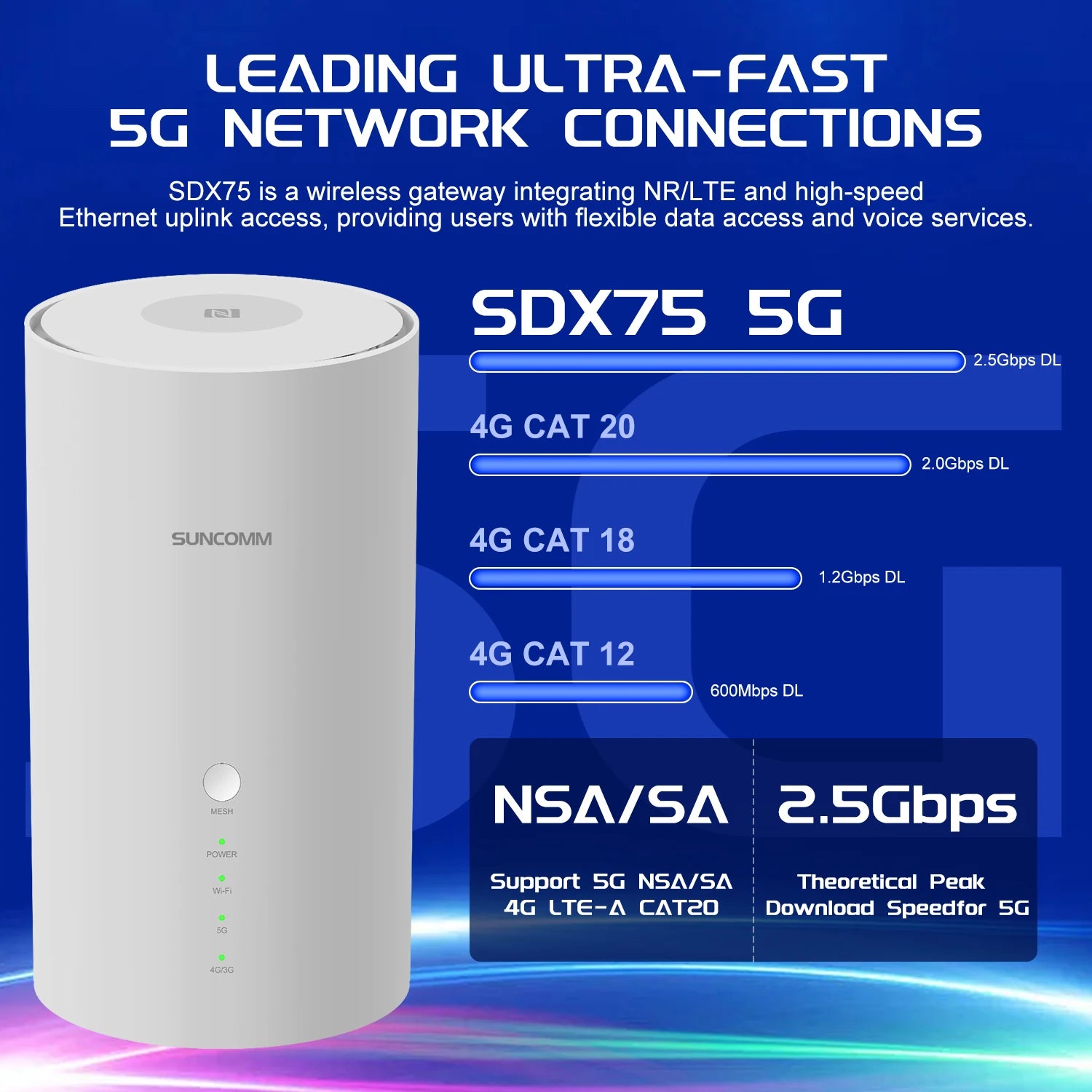

SDX75 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.
SDX75 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection.

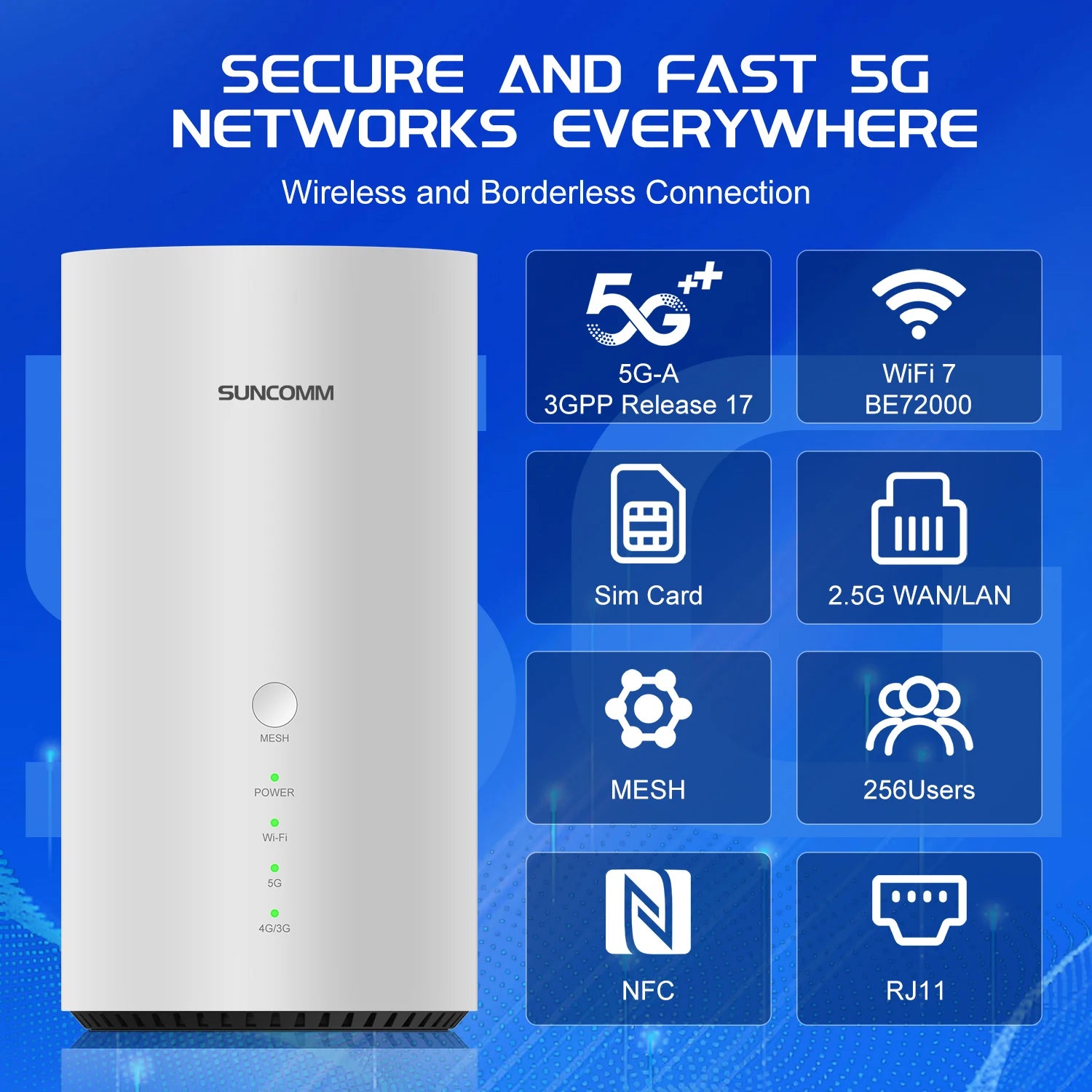

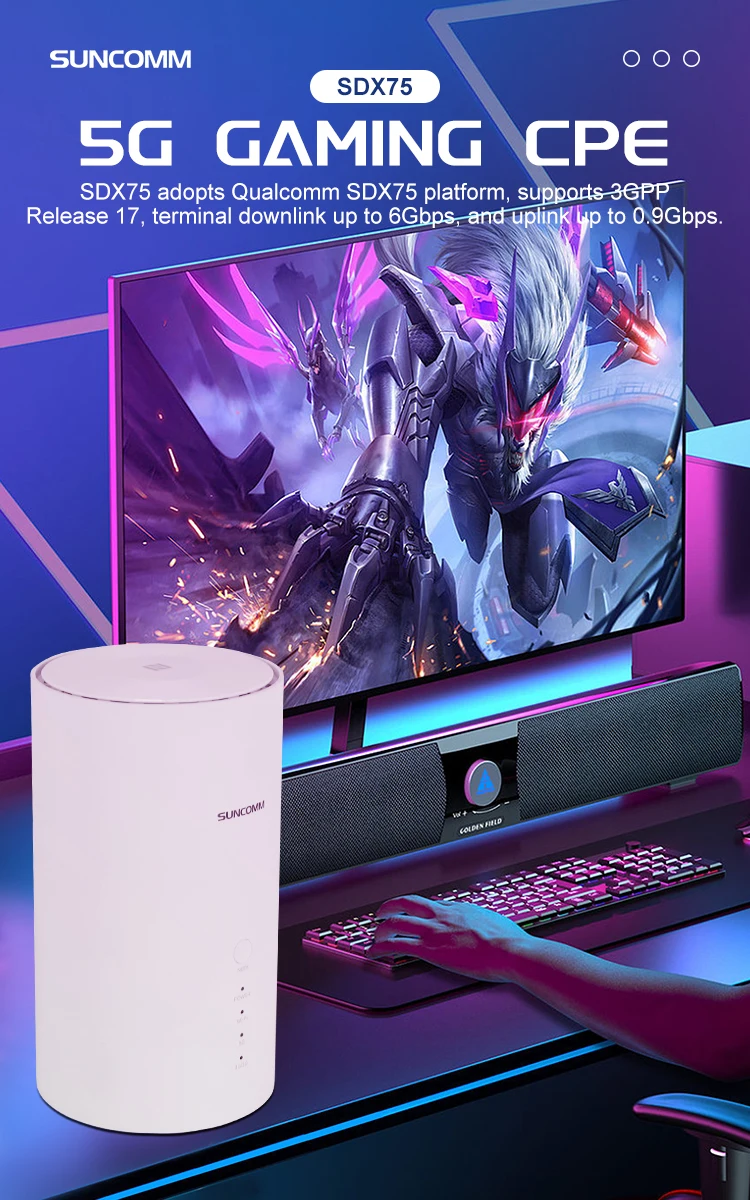

SDX75 adopts Qualcomm X75 platform, supports 3GPP Release 17, terminal downlink up to 6Gbps, and uplink up to 0.9Gbps. Support the newest Qualcomm WiFi 7 solution，the Wi-Fi feature can support 2.4G and 5.8G DBDC up to 6.4Gbps，and also support Easy mesh R4 function ，can build a network connect with other WiFi router.
Specification
Technical Standard	Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax/be
Frequency (EA) Suitable for (Europe/Africa/Asia/Australia/Middle East/Southeast Asia)	EA version: [5G NR]: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78/n79 [LTE]: B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43/B71 [UMTS]:B1/B3/5/8

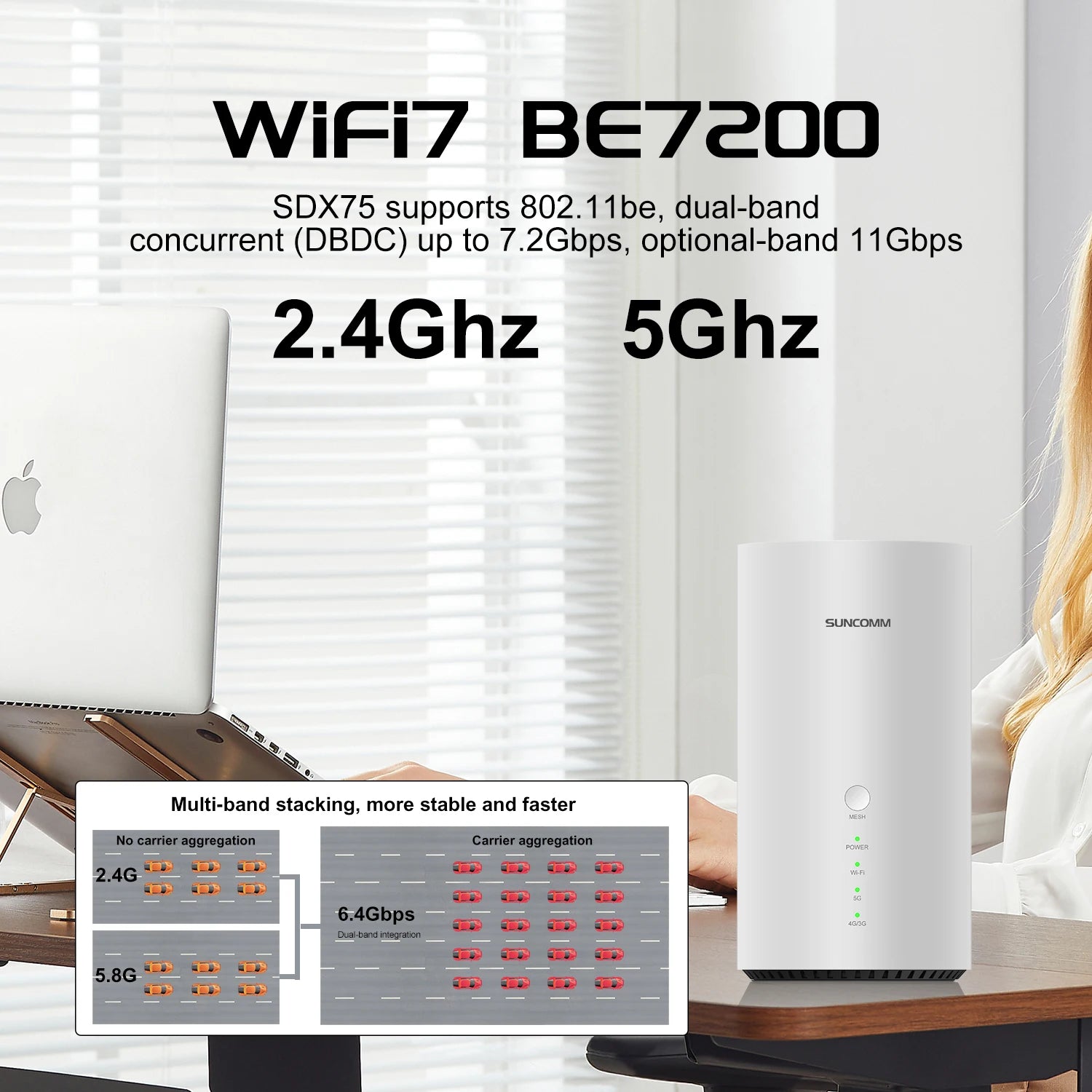

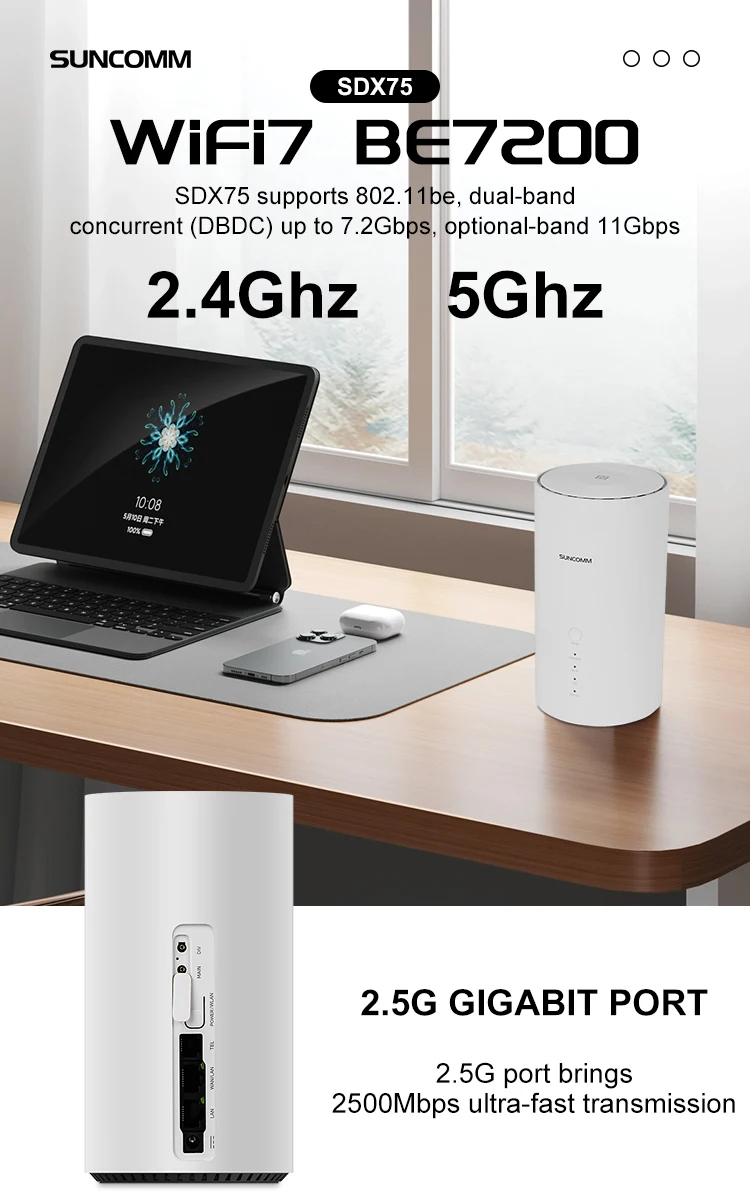

WiFi 7	2.4GHz/5GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be7200，user 256 Easy mesh R4 is supported
Maximum Data Throughput	5G SA NSA mode 5G NR: (DL/UL) 6Gbps/900Mbps，  LTE: (DL/UL) 1.6Gbps/200Mbps
Receive Diversity	Support Receive Diversity
MIMO	DL 4x4 MIMO

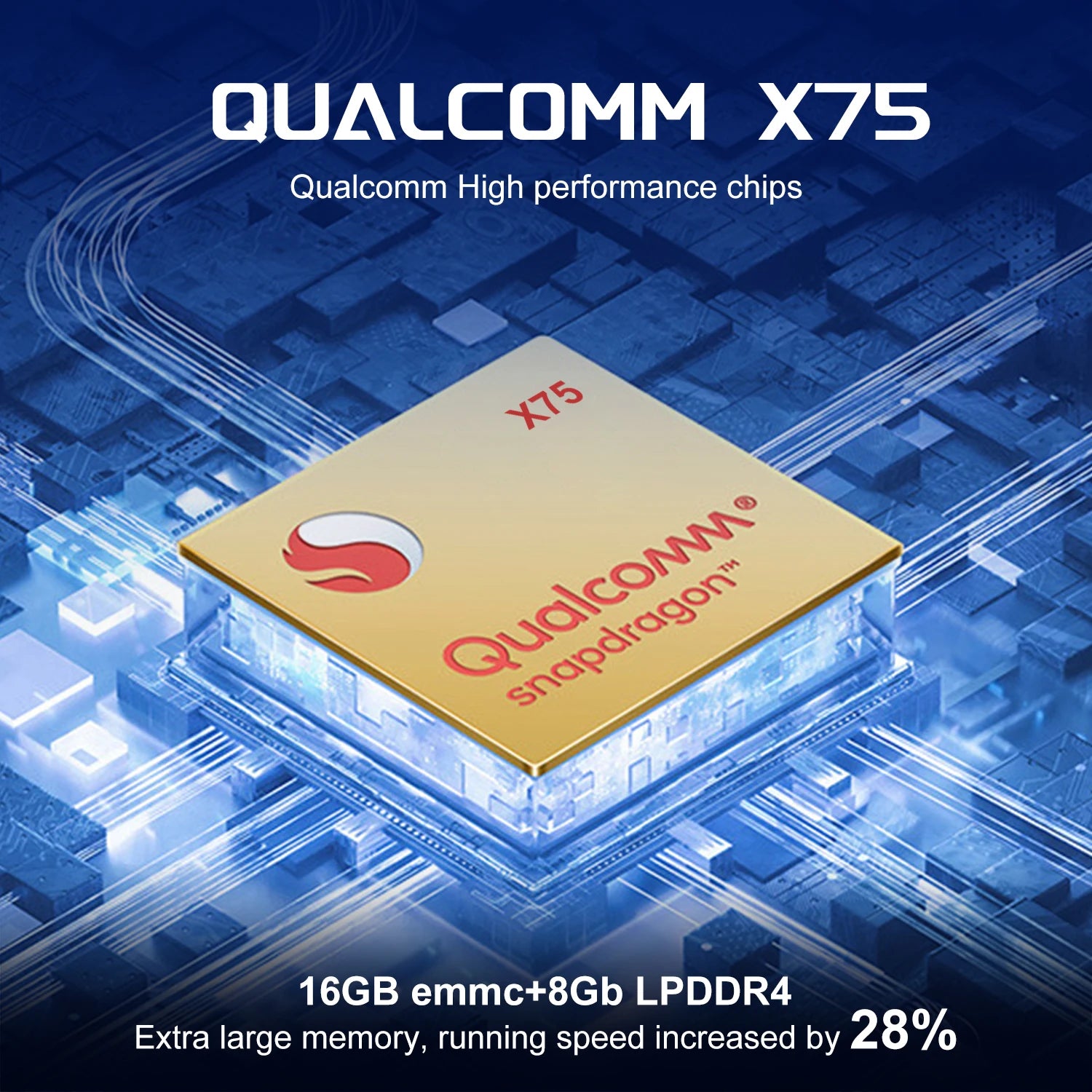

Chipset	Qualcomm Snapdragon X75
Memory	Modem: 16GB emmc+8Gb LPDDR4
Power Consumption	<24W
Power Voltage	DC12V/2A
USIM/SIM	4FF SIM card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot

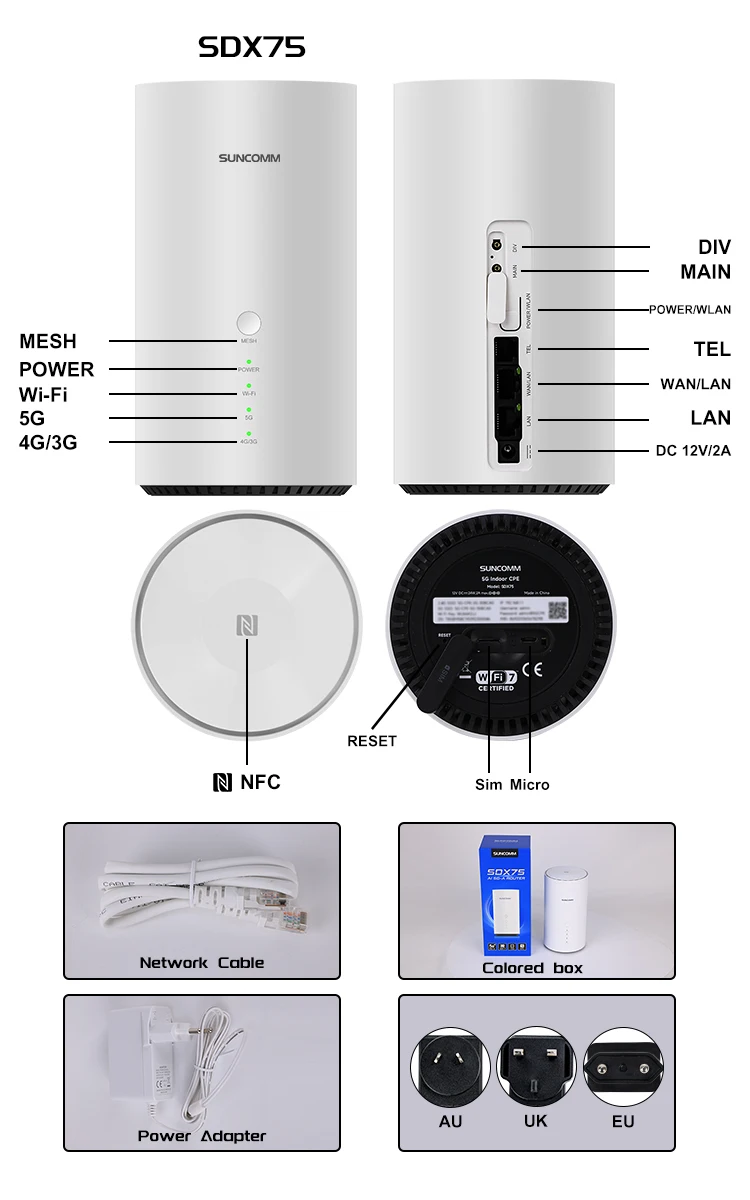

LED	Power Indication; Wi-Fi Indication; 5G Indication LED; 4G Indication LED
USB	USB 2.0
Antenna	LTE/NR Antenna*6,   2*TS-9 external antenna is optional
Buttons	POWER, Reset, WPS (easy mesh )

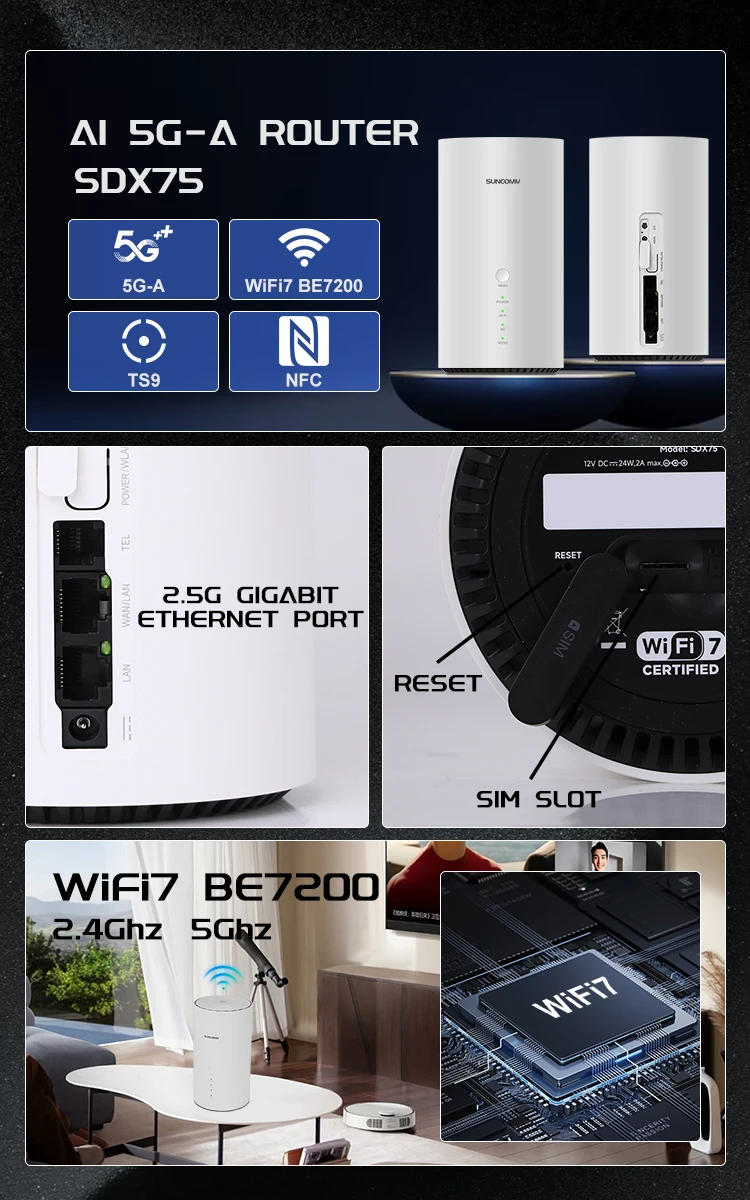

Ethernet	1*WAN+1*LAN • 2*1000 Base automatic adaptive port （default） • 1*2.5Gbps + 1*1Gbps port （optional）
VOICE	1*RJ11，support VOIP/VOLTE/VONR(optional)
Reset	Pinhole

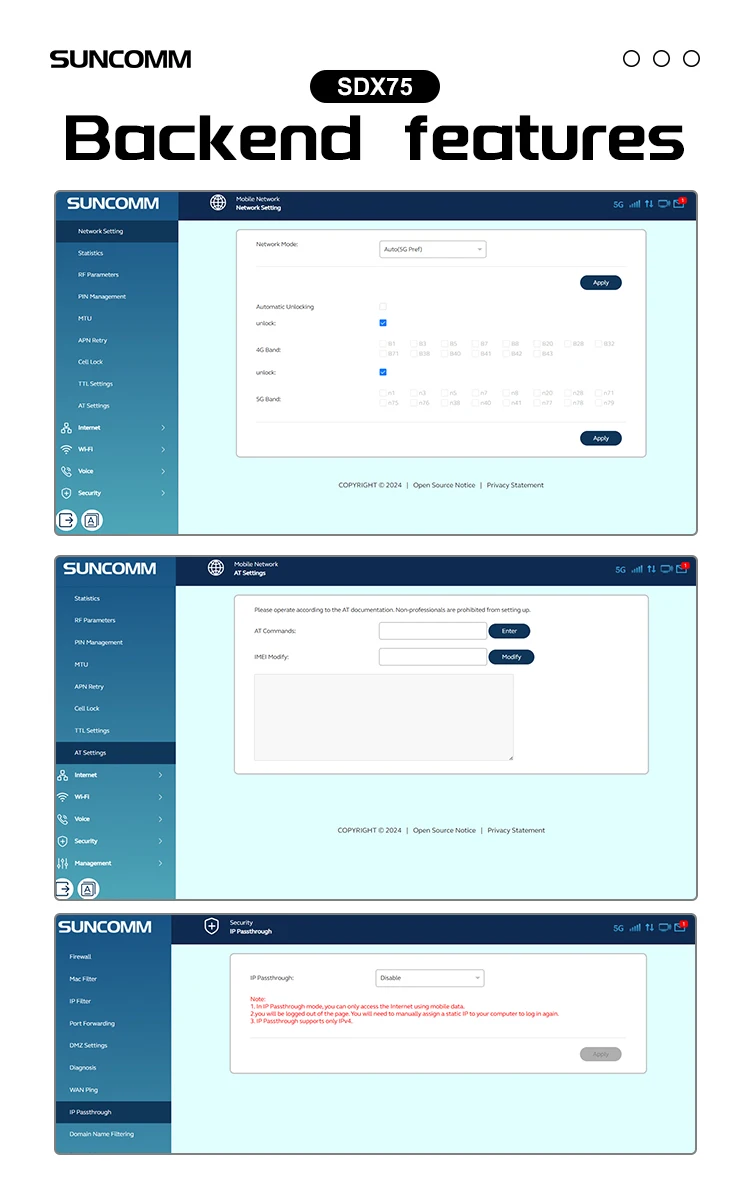

Software support	IMEI Modify，TTL Settings，Cell Lock，APN，Band Lock，VPN PPTP L2TP GRE，WPS，WiFi 7，NFC，Wi-Fi Mesh，SIP，VoLTE，VoIP，SMS，IP passthrough , Carrier aggregation，AT Commands
Lnterface language	English, French, Portuguese, Spanish
NFC	Supported NFC to connect Wi-Fi
ESD	ESD Protection circuit; Contact±8KV, Air±10KV
HTTP	Support
Operating Temperature	Normal: 0°C ~ +45°C
